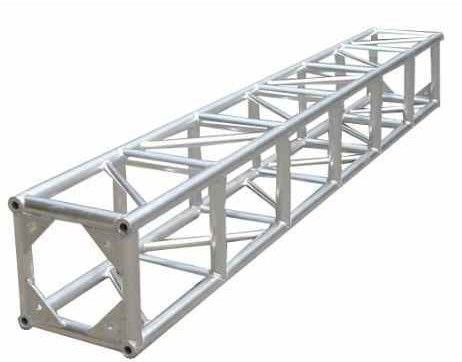

Aluminum Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss

Aluminum Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss

    • Aluminum  Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss
    • Aluminum  Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss
    • Aluminum  Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss
  • Aluminum  Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss

    Product Details:

    Place of Origin: China(Mainland)
    Brand Name: XYTruss
    Certification: TUV and SGS
    Model Number: XY-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Square meters
    Price: negotiate
    Packaging Details: air bubble film that can be suitable for long trantsport
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 Square meter/square meters per month
    Contact Now
    Detailed Product Description
    Color: Black Or Silver Material: Aluminum Alloy T6082
    Application: Concert ,exhibition,events,wedding Main Tube: 50*3mm,50*4mm,50*2mm
    Shape: Triangle Square Circle Size: 300*300mm,290*290mm
    Length: Available,0.5m,3m Feature: Heavy Load,convenient To Install And Dismounting
    Unit Length: 4m ,0.5m,3m,2m,1m Brace Tube: 20*2mm,25*3mm,30*3mm
    Type: 290*290mm Spigot Truss

          Aluminum Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss

        This truss is minimum duty truss structure, made of the high strength aluminum alloy profile , the installation and transportation
    is convenient . Widely used in exhibition, concert,advertising and background decoration and other indoor needs. Shape and size
    specifications can be customized according to the requirements.


    Material Aluminum 6082 -T6
    Connection way Screw / bolt
    Truss type Ladder, triangle, square truss, triangular truss, circular truss, arch truss, etc.
    Standard size 200mm,300mm,350mm,400mm,450mm,500mm,400*600mm,500*600mm,520*760mm,600*760mm
    Single length 0.5m,1.0m,2.0m,3.0m,4.0m and so on
    Diameter Thickness 50*3mm , 50*2mm,35*2mm,30*2mm,25*2mm,16*1mm,12*1mm
    Style Straight frame ,round frame ,arc frame
    Application fields Hang light, speaker, LED screen, outdoor roof truss, exhibition stand build, stage truss, background truss



      Instruction For Installation:
          Step 1: Put the base on the ground according to the dimention of the truss.
          Step 2:Install the hinge on the base.
          Step 3:Put the hinge into the sleeve.
          Step 4:Make the pillar connect with the hinge ,put the top of the pillar on the ground ,then install the top section and the hand chain hoist .
          Step 5:Complete all pillars according to above steps.
          Step 6: The cross beams are connected to the sleeve which form the top shape.
          Step 7: The belt is tied the beam and then hung on the hoist .
          Step 8:Pulling the hoists at the same time , making the beams balanced rise.
          Step 9: Install the assist legs.
          Step 10: Disassembly in reverse order .





    Item

    Aluminum truss description

    Specification

    910mm*760mm/760mm*600mm/760mm*520mm/600mm*500mm/500mm*500mm/
    450mm*450mm/400mm*400mm/350mm*350mm/300mm*300mm/250mm*250mm/

    Tube Size

    The main tube 50*3mm , brace is 25*3mm and 25*2mm

    Normal length

    Each piece truss is 0.5M-4M

    Material

    Mainly aluminum 6082-T6

    Feature

    all kinds of truss can be retread and reused, because it have high corrosion resistance, non-toxic with high technical welder and good quality of alloy aluminum tube. It can help you to save the expenditure.

    Other products

    square truss , straight truss, circle truss, ladder truss,
    spigot truss, bolt truss and other abnormity truss are available

    Term of payment

    30% deposit , paid 70% rest before ship

    Application fields

    hang light, hang speaker, hang LED screen, outdoor performation roof truss, exhibition stand build, stage truss, background truss.......




       1.Lighting truss size :


    Size(mm) Main Tube(mm) Horizontal tube(mm) Brace Tube
    (mm)
    Loading Capacity
    (kg)
    Span(m)
    300*300 50*3 30*2 25*2 300 12
    350*350 50*3 30*2 25*2 500 14
    400*400 50*3 30*2 25*2 600 16
    450*450 50*3 30*2 25*2 700 18
    500*500 50*3 50*2 25*2 700 20
    520*760 50*3 50*2 25*2 1000 22
    600*760 50*3 50*2 25*2 1500 26



    Material Aluminum alloy 6082-T6
    Brand Name New Forces
    Size 400m*400m Costomized
    Brace tube 20*2mm/25*2mm/30*2mm
    Truss length 1m,2m3m Costomized
    Certificate ISO, CE, TUV, SGS
    Application

    Events,party,concert,exhibiton ,catwalk fashion show,school,

    church,wedding,etc.




    Aluminum  Frame Truss Structure/ Event Aluminum Bolt /Bolt Stage Lights Exhibition Truss
