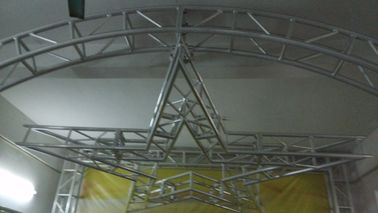

Display Aluminum Square Truss Exhibition System With Star Shaped

Display Aluminum Square Truss Exhibition System With Star Shaped

    • Display Aluminum Square Truss Exhibition System With Star Shaped
    • Display Aluminum Square Truss Exhibition System With Star Shaped
    • Display Aluminum Square Truss Exhibition System With Star Shaped
    • Display Aluminum Square Truss Exhibition System With Star Shaped
    • Display Aluminum Square Truss Exhibition System With Star Shaped
  • Display Aluminum Square Truss Exhibition System With Star Shaped

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: xfstar
    Certification: TUV and SGS
    Model Number: xfh3030

    Payment & Shipping Terms:

    Minimum Order Quantity: 10/Meters
    Price: USD/39-57/Meter
    Packaging Details: air bubble film that could be suitable for long transport
    Delivery Time: 5-7 days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000/Meters/week
    Contact Now
    Detailed Product Description
    Color: Silver Certificate: TUV And SGS
    Style: Arc Truss,triangle Truss And Square Truss Modle: Screw Truss
    300*300MM*1M Weigh: 7.6KG/PCS Length: Each In 0.5m 1m 2m 3m 4m Or Customize
    Packing: Exibition Stand Is Packed By Air Bubble Film Material: Aluminuim Alloy 6082-T6
    Main Tube: 50*3mm

    Truss Display Aluminum Truss Exhibition System Exhibition With Star Shaped  Truss





    Display Aluminum Square Truss Exhibition System With Star Shaped





    Product Description

    Specification


    Size(mm)



    Main Tube(mm) Horizontal tube(mm) Brace Tube(mm) Loading Capacity(kg) Span(m)
    300*300 50*3 30*2 25*2 300 12
    350*350 50*3 30*2 25*2 500 14
    400*400 50*3 50*2 25*2 600 16
    450*450 50*3 50*2 25*2 700 18
    500*500 50*3 50*2 25*2 700 20
    520*760 50*3 50*2 25*2 1000 22
    600*760 50*3 50*2 25*2 1500

    26



    Material analysis

    Material

    Aluminum 6082/T6. Aluminum 6061/T6

    Length available

    1m,2m,3m,4m. OEM offered.

    Shape

    Ladder,Triangle,Square,Circle Truss

    Color

    Silvery and black or customized

    Type

    Spigot and screw

    Certification

    TUV,SGS

    Characteristics

    Durable,Light Weight with high loading capacity.Raw material is aprecipitation hardening aluminum alloy, Containing magnesium and silicon as its major alloying elements. It has good mechanical properites, exhibits good weldability. It also has good effect of Proof Stress, corrosion resistance, antioxidation.

    application

    LED truss to hang LED screen / Iinear speakers or decorate truss

    Background truss: to hang up lights and LED, screen for truss frame

    Truss system: to hold events( for light, LED, speaker, audio, and so on)

    Layder truess: hanging speakers







    Display Aluminum Square Truss Exhibition System With Star ShapedDisplay Aluminum Square Truss Exhibition System With Star Shaped
